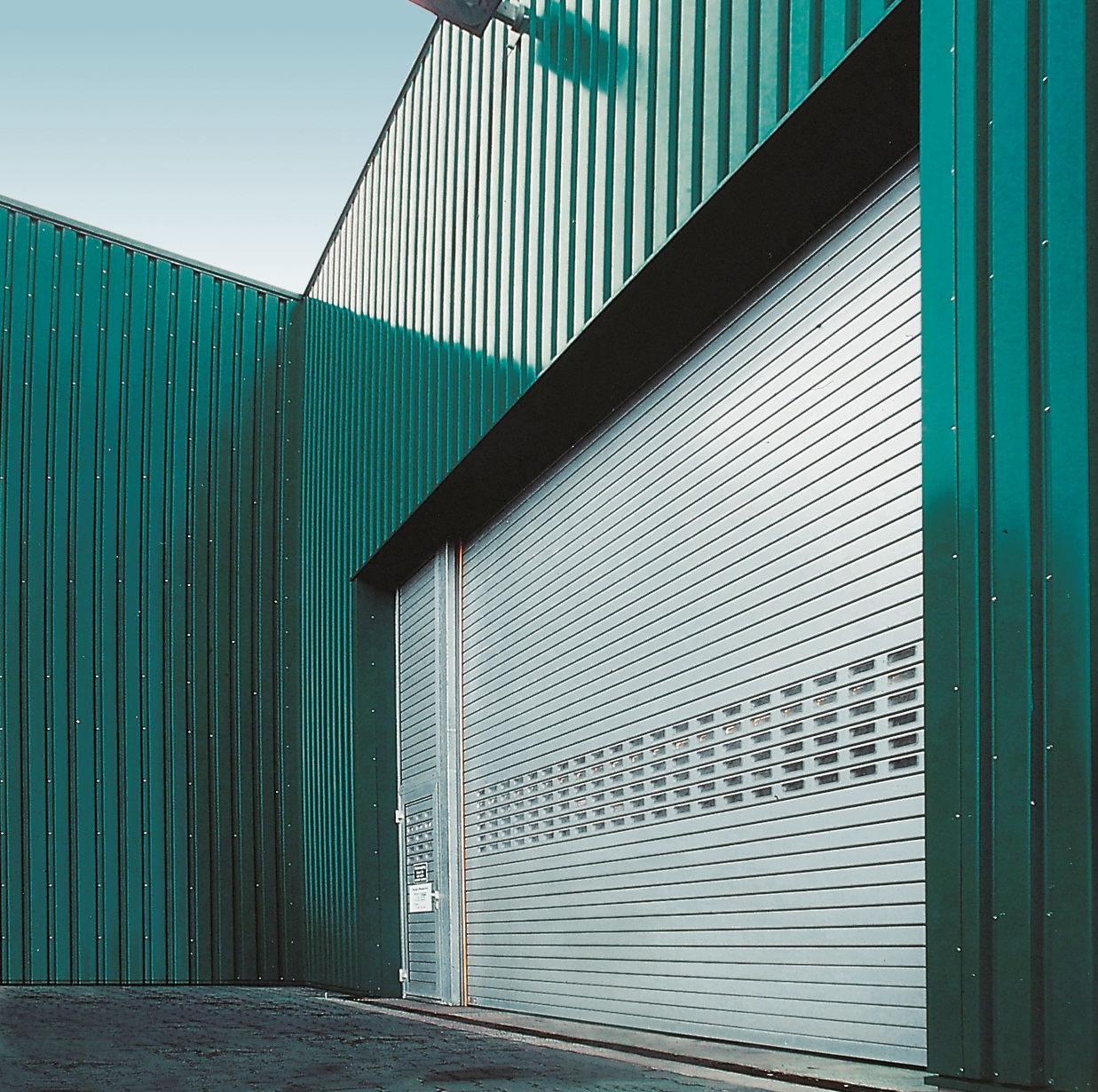

The HR 116 A is best suited to large structural openings.

It comes in two variants, the first of which is stucco-textured aluminium (without colour coating) which makes the rolling shutter curtain less sensitive to surface damage. The second is coil-coated aluminium which has high-quality colour coating on both sides to provide long-term protection against adverse weather effects and is reinforced through the application of protective paint with polyamide particles. This also reduces abrasion and noise.

Double-skinned window elements are also available and consist of transparent, impact-resistant polycarbonate with high quality cover frames in either a rectangular or logistics arrangement.

HR 116 A

> Available with or without colour coating on both sides (standard colours RAL 9002 and RAL 9006)

> 6 preferred colours at a reduced price or more than 1000 other RAL colour options available

> Surface without colour coating: Stucco-textured without paint

> Window elements available: rectangular or logistics arrangement

> Profile height: 119 mm

> Curtain weight: approx. 10 kg / m²

> Wind load class 2 up to door width of 10000 mm

> Thermal insulation performance based on single door: 5.3 W (m²k)

> Max door size: W 11750 mm x H 8000 mm

> Operation: Electric only

> Rolling shutter type: Classic
